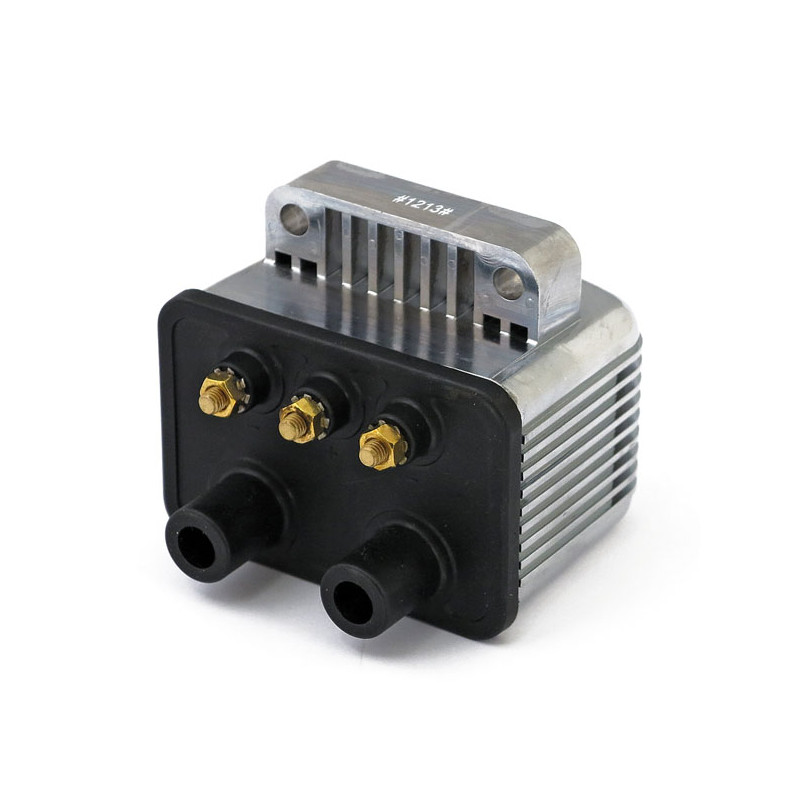

Mini single fire coil. 12V, 3 ohm. Chrome 65-99 B.T. 65-03 XL. For carbureted models with custom single fire electronic ignition

Chrome. 3.0 Ohm primary resistance 15.000 Ohm secondary resistance. Primary inductance 16 MHY secondary inductance 42 HY capable of +40.000V output on each side. Brass primary and high voltage terminals. Case fins aid in additional core cooling. Note: Difference between Single & Dual Fire: - Dual Fire - This is the way the earlier pre-Twin Cam engines work. A single coil is used and both spark plugs fire simultaneously. This is the simplest system. The wasted spark is sometimes said to be horsepower robbing. - Single Fire - This is the way the stock 00-up Twin Cam engines work. Two separate coils will fire the spark plugs independently and only the spark plug of the cylinder that is on compression stroke will be fired. It is said that these engines vibrate less and can improve power. The effects will become more pronounced with hotter cams and higher RPM. 65-99 B.T. 65-03 XL. For carbureted models with custom single fire electronic ignition (excl. Twin Cam & other single fire applications) (NU)
