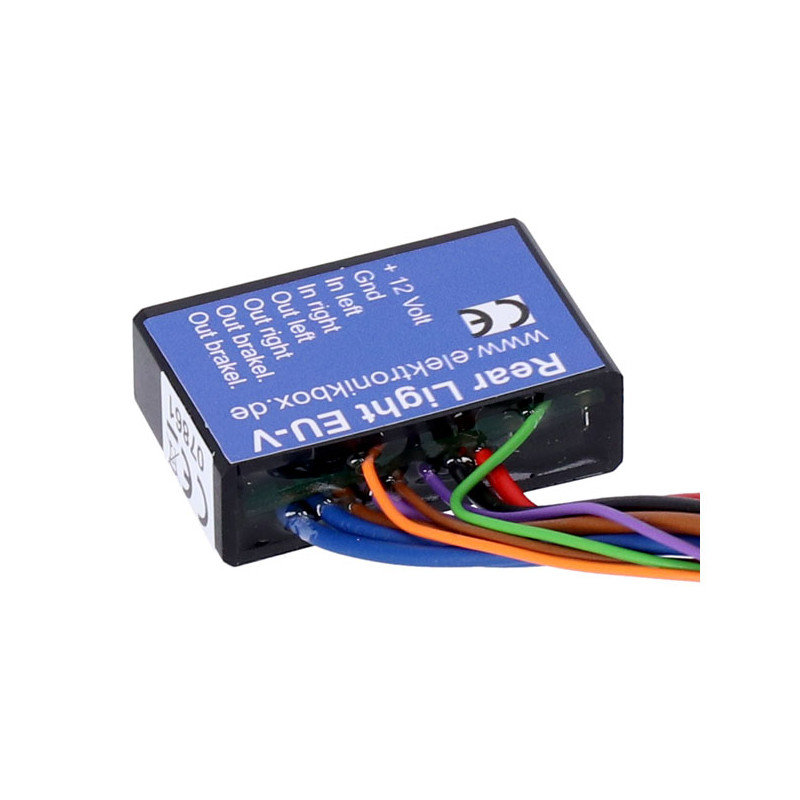

Axel Joost Elektronik, Rear Light EU-V conversion module

The Rear Light EU-V is a conversion module for vintage bikes without hazard light / emergency flasher function. It converts the two signals from the original turn signal/brake light combination into four separate outputs for upto 2 (parallel) brake lights/taillights and turn signals. A conversion of an imported US bike to the EU regulations can be done much quicker and more economical. With the brakelight dim function the brakelight is dimmed to 30 % brightness only when the brake is not activated. A brakelight flasher function can optionally be activated to show a 3x fast warning flash before it stays lit. - Dimensions: 40 mm x 25 mm x 125 mm - Body material: ABS with waterproof poured 2k epoxy resin - Input voltage range: 7 - 18 Volt - Connections: Inputs 014 mmOutputs 05 qmm - Output power: Max. 50 Watt / Output - Maximum ambient temperature: 80 degree Celsius
